Sensor Simulator Probe

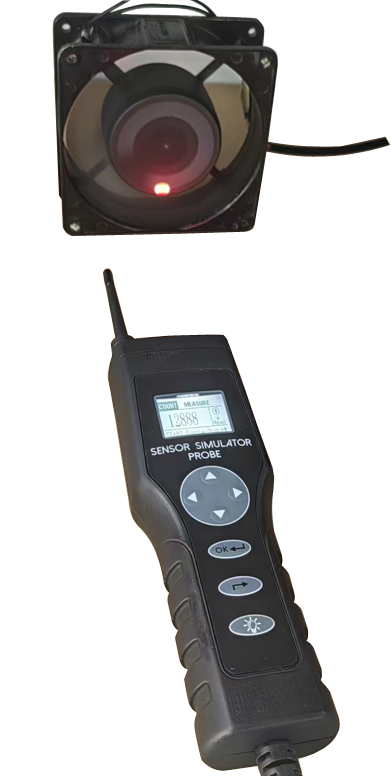

The Sensor Simulator Probe with Tachometer not just simulates the signals generated by different types of sensors to distinguish faults in performing troubleshooting in the vehicle, but also performs the functions of RPM measurement and COUNT reading. It can be used in all automobiles (12V/24V).

Exclusive Invention

1. Work as Test Probe (Volts, Frequency, Resistance & Duty cycle)

2. and Tachometer (RPM measurement & count)

This tool  eliminates many different tools and perform functions of two testers in one device. Very useful in vehicle electrical diagnosis and easily detect faults in the sensors or in the circuits.

Unique Features

1. On Hold reading of the test result

2. View Last Test Result

3. Shows Input Batterty Voltage

Function

1. Tachometer (RPM MODE)

2. Tachometer (Count Mode)

Technical Specifications:

Operating Voltage …………………………………………………...9V DC to 30 V DC Max

Display……………………………………………………………………….LCD Screen (128 x 64)

Voltage measurement range ……………………………………Up to 100 Vdc max,

Accuracy…………………………………………………………………. +/- 2% + 1 digit

Tachometer:

RPM display……………………………………………………………. 99999 (Maximum)

Range……………………………………………………………………… 10 ~ 99999 rpm

Resolution………………………………………………………………. 0.1 rpm

Range……………………………………………………………………… 10000 ~ 99999 rpm

Resolution………………………………………………………………. 1 rpm

Accuracy…………………………………………………………………. +/- 0.04% + 2 digit

COUNT display …………………………………………………………. 99999 (Maximum)

Range……………………………………………………………………… 0 ~ 99999

Resolution………………………………………………………………. 1 digit

Maximum input frequency……………………………………… 10K Hz, 5% pulse width.

Over Range display ……….………………………….……………. Over Limit.

Refresh rate ……………………………………………………………. 1s ~ 7s (according to rotating rate)

Sensor type ……………………………………………………………. Laser light and Photo diode

Measuring distance ………………………………………………... 50mm to 200 mm.

Simulated Voltages:

Max. Output Current: 3.0 Amp

Positive Voltage (+) Output Range: [0.2 Vdc to 7.0 Vdc]

Adjustment Resolution …………….…………………………...0.1V

Accuracy…….…………………………………………………….…… +/- 2%

Max. Output Current for both (+V) and (-V): 150 mA

Positive Voltage (+) Output Range: [0.0 Vdc to 12.0 Vdc]

Adjustment Resolution…………………………………………...0.1V

Accuracy…….…………………………………………………….…… +/- 2%

Negative voltage (-) Output Range: [0.0 Vdc to -12.0 Vdc]

Adjustment Resolution……………...…………………………... -0.1V

Accuracy…….……………………………………………………….… +/- 2%
