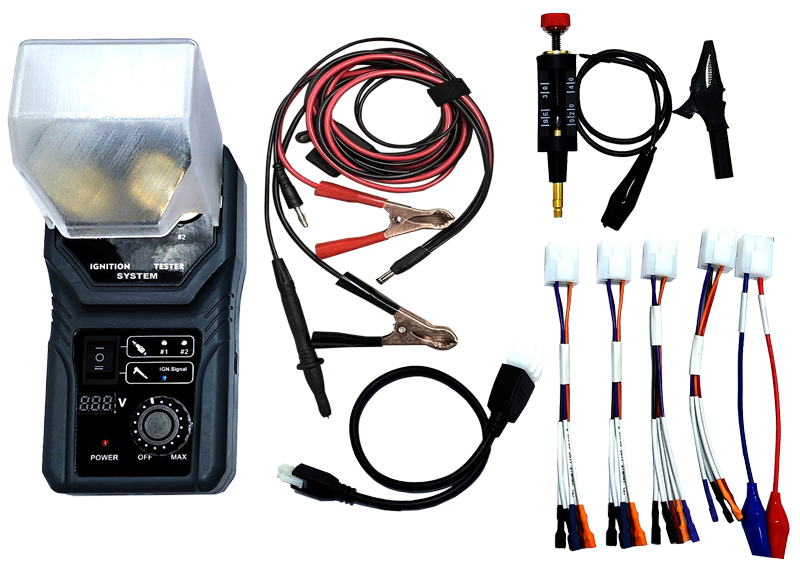

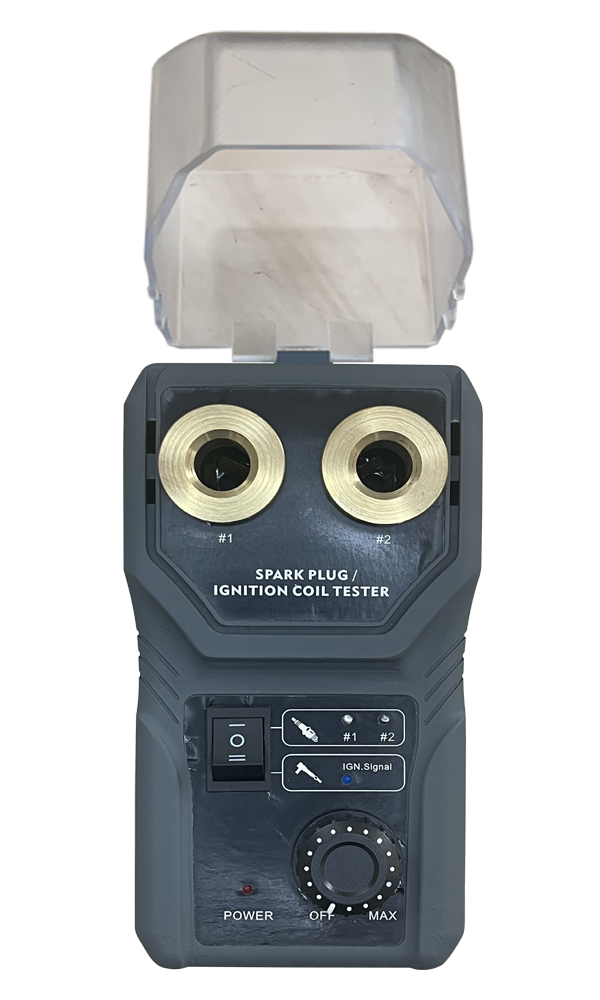

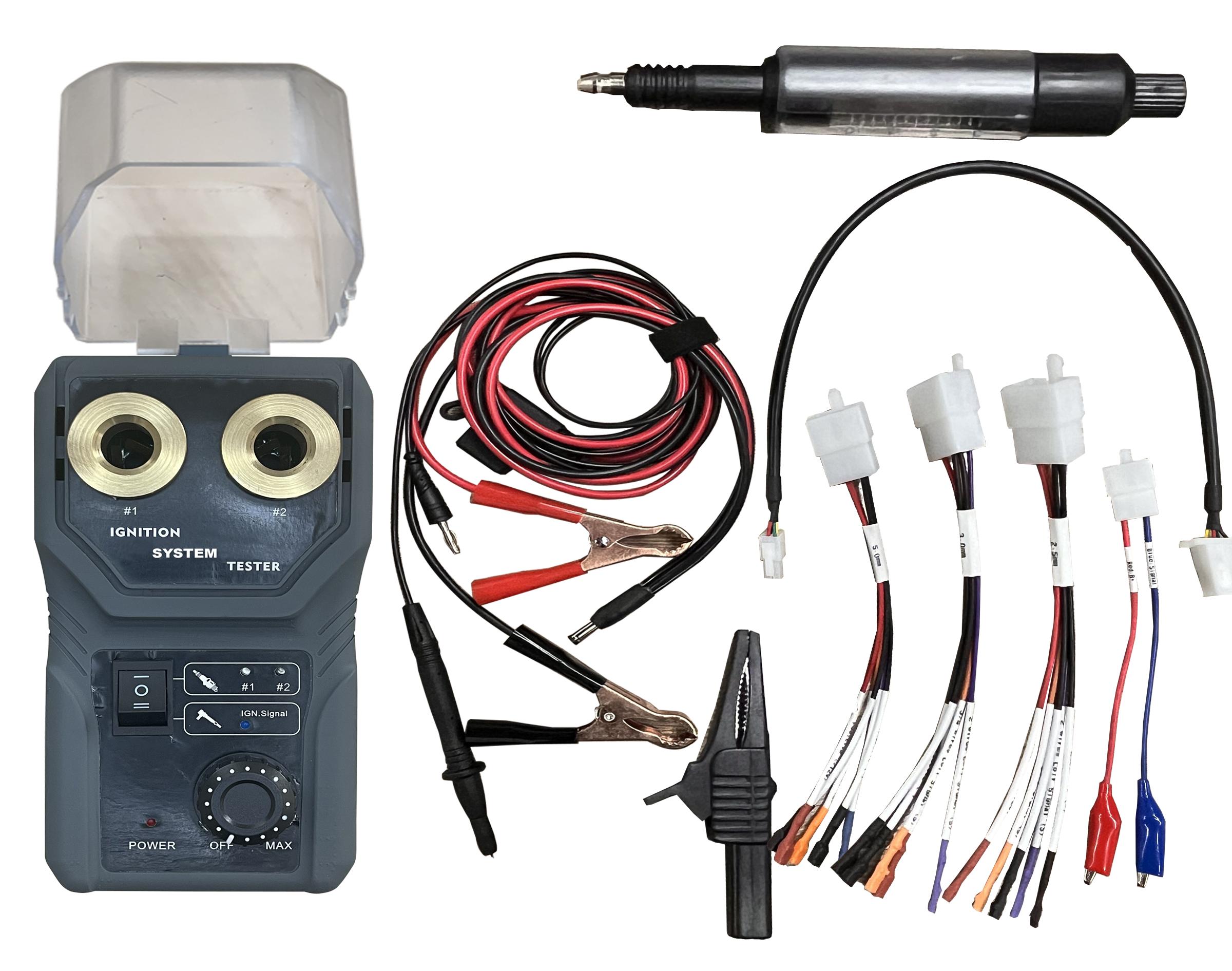

Ignition System Tester

uploads/image/20240105/1704453277.png

This Ignition System Tester (IST) comes with a variety of functions that are very helpful and effective for testing the Ignition System of the vehicle including the Spark Plug Test and Ignition Coil Test. Also, it can be used to test Fuel Injectors to measure their injection volume and for cleaning them, as well as simulate Sensor signals in Square Wave frequency.



Exclusive Inventions

 1. Combined Spark Plug and Ignition Coil Tester in one device. No tester in the world with this combined function

 2. Ignition Coil Tester (Ignition Spark Tester provided)- It tests all ECU-controlled, electronically controlled, or conventional distributor-type controlled ignition coils. It can test for High Voltage leakage due to a hairline crack on the coil housing using its Spark Leak Test Probe.

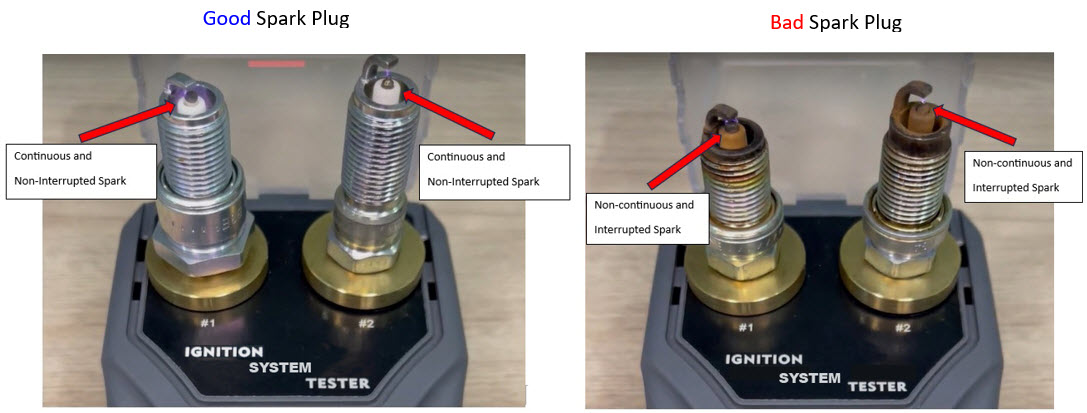

3. Spark Plug test- It shows the conditions of spark plugs based on their sparks generated to determine whether the spark produced after cleaning and resetting the spark gap is good or bad.

uploads/image/20230809/1691558605.jpg

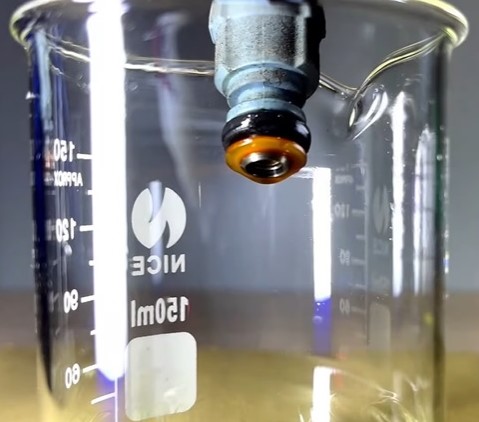

4. Fuel Injector Test - It measures the amount of fuel injection produced and also helps clean the fuel injector to get the best spray results.


uploads/image/20230721/1689926343.jpg


5. Simulate Sensors Signals - It can simulate sensor signals in Square Wave frequency like ABS sensor, Vehicle Speed sensor, Crankshaft Position sensor, Camshaft Position sensor, and Gearbox Input Shaft Speed sensor.


Unique Features /Applications

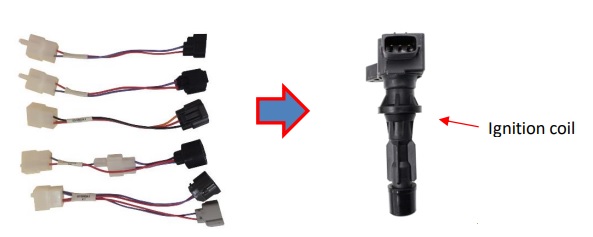

 ·  The Tester comes with a range of connecting cables with terminals to suit the majority of 2-wires, 3-wires or 4-wire Ignition Coil of various car makes.

uploads/image/20230721/1689930175.jpg

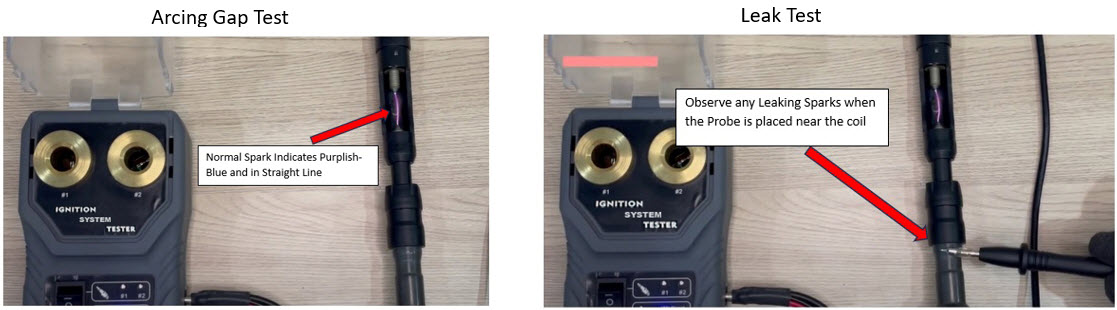

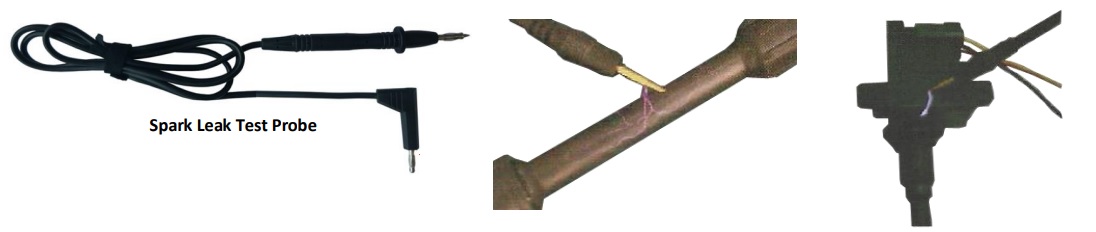

  ·  Testing ignition coil leaks with a Spark Leak Test Probe.

uploads/image/20230721/1689927237.jpg

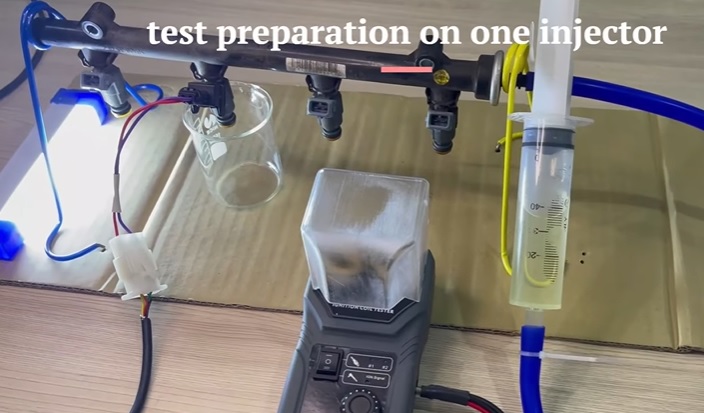

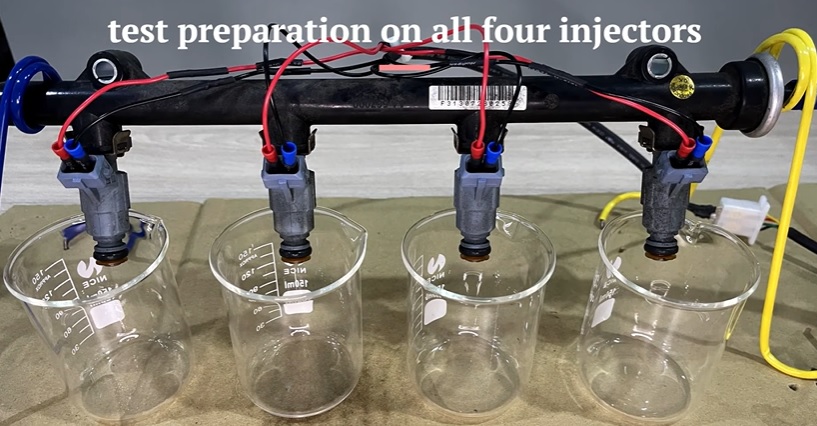

·  Testing Fuel Injectors and measuring their injection volume.


uploads/image/20230721/1689927576.jpg


uploads/image/20230721/1689925682.jpg

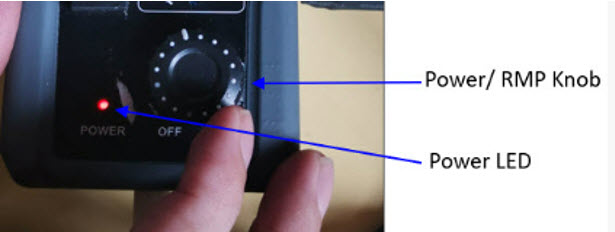

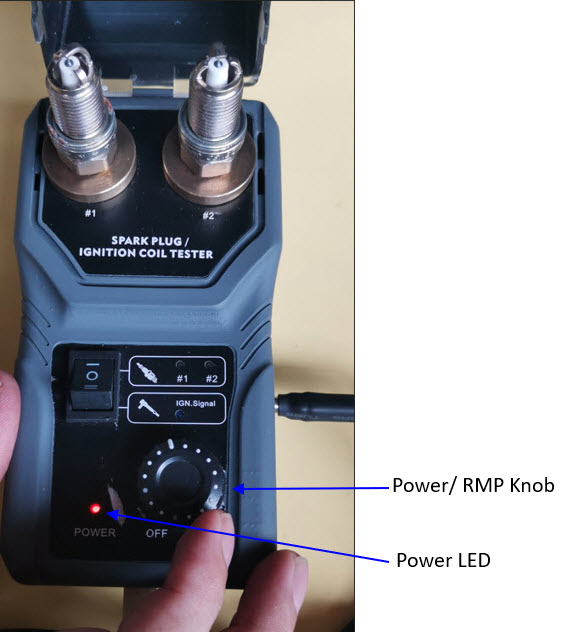

·  Adjustable RPM range to increase and decrease the RPM speed during Ignition Coil Test, Spark Plug Test, and Fuel Injector Test.

           uploads/image/20231213/1702458538.jpg

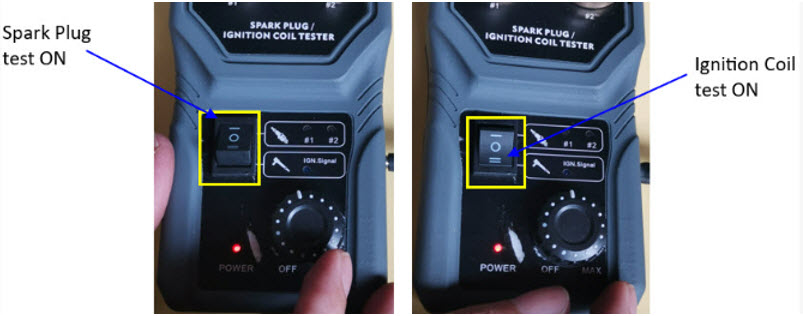

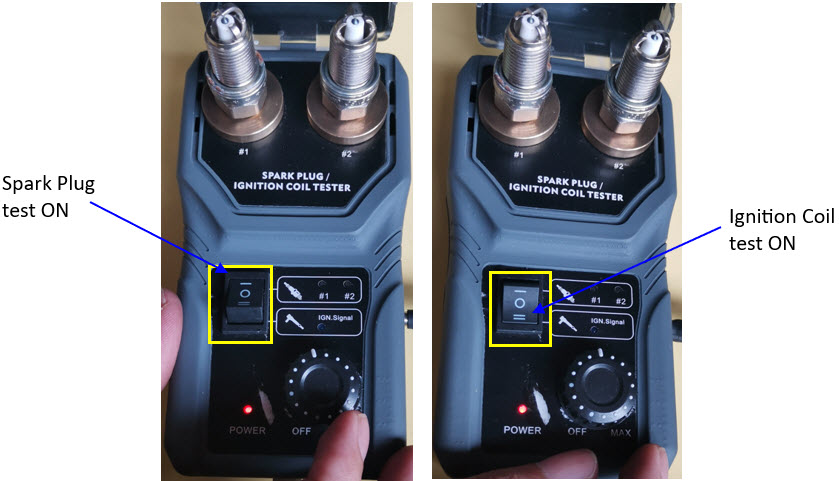

 · 3-position selector switch

           uploads/image/20231213/1702453889.jpg

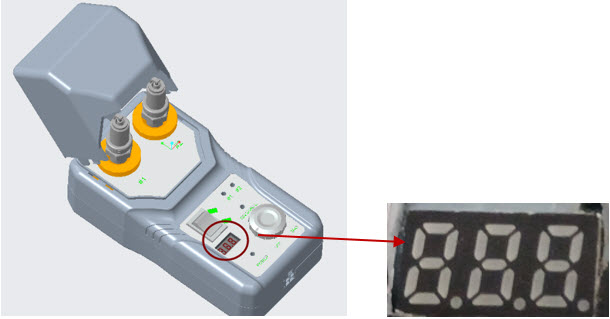

 · Voltmeter to show input voltage during tests. A low voltage input of less than 12.0 Vdc will give wrong test results. (New added unique feature)

                          uploads/image/20231213/1702452446.jpg

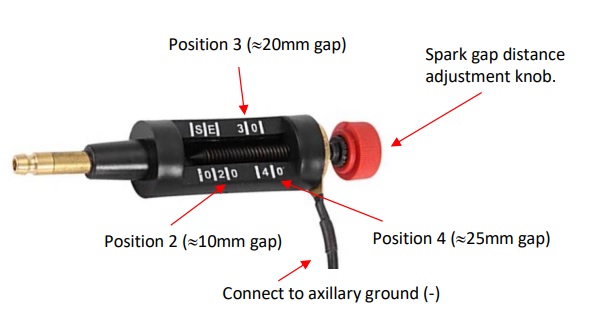

  · Spark Gap Adjustment Knob

uploads/image/20230721/1689935778.jpg


Spark Plug & Ignition Coil Tests demo

https://youtu.be/FIifMRS-oxg


Injector Test demo

https://youtu.be/0qa3Iig-7Qo


Specifications

Power Input……………………………………………..2V DC supply

Number of Spark plug Tests simultaneously………...2 nos.

Pulse signal indications.…………………...................Spark Plug test – 2 Green LEDs

Ignition Coil Test…………………………....................2 wires, 3 wires and 4 wires type.

Ignition Pulse signal indications.……………………..1 Blue LED

Adjustable RPM Range……………………................180 RPM to 10,000 RPM max.

Ignition Spark Tester Gap adjustment ………............0 ~ 25mm Arcing distance.

Simulation Signal Range…………… .........................7Hz to 346Hz max. (Square Wave)

Simulation Voltage…………………............................12 Volts (Depends on Battery Voltage)
